Application and advantages of 3D CNC wire bending machine

3D CNC wire bending machines primarily bend various wires. As customer demand increases, the precision and quality requirements for wire forming are becoming increasingly stringent, placing increasing demands on the bending performance of CNC wire bending machines. In the field of metal wire processing, 3D CNC wire bending machines, with their precision and intelligent features, have become key equipment for complex wire forming. They can achieve complex multi-dimensional bending while ensuring consistent batch production. Their unique operating principle and significant advantages have earned them a prominent position in industries such as automotive manufacturing, furniture hardware, and aerospace.

Ⅰ. Advantages of 3D CNC Wire Bending Machines

This machine’s design concept replaces manual labor with a machine. It features built-in straightening, allowing production from coiled material.
It is suitable for processing iron, steel, stainless steel, and non-ferrous metal wire (round, square, and flat). It can bend square, round, hexagonal, elliptical, and irregular shapes, as well as various flat buckles and hooks.
The advantage of 3D CNC wire bending machines lies primarily in their ultra-high forming precision. Traditional mechanical bending machines rely on manual adjustment, which can easily lead to cumulative errors due to differences in operator experience. However, the CNC system’s closed-loop control ensures bending angle errors within ±0.1° and length errors within ±0.05mm. For products requiring extremely high dimensional accuracy, such as automotive seat frames and precision springs, this level of precision is unmatched by traditional equipment.

Secondly, it offers powerful complex shaping capabilities. Through multi-axis linkage and a rotary mechanism, the machine can simultaneously perform a variety of processes, including flat bending, three-dimensional bending, arc forming, and end flattening. It can produce complex workpieces such as three-dimensional frames, spiral structures, and special-shaped hooks, which are difficult to achieve with traditional equipment, significantly reducing subsequent assembly steps.

3D CNC wire bending machines also excel in production efficiency. Their automated feeding, forming, and cutting processes enable continuous production, allowing a single machine to process hundreds of products per hour. Changeovers require only pre-set programs, eliminating the need for repeated mechanical adjustments. This reduces changeover time from hours with traditional equipment to minutes, making them ideal for flexible production of high-variety, small batches.

Furthermore, the equipment’s stability and energy efficiency are also noteworthy. The servo motor drive reduces energy consumption by over 30% compared to hydraulic drives and operates in low noise levels. High-precision guide rails and mold positioning systems ensure consistent long-term production, keeping scrap rates below 0.5%, significantly reducing material waste and production costs.

In summary, 3D CNC wire bending machines, through their combination of digital control and precision mechanical structure, not only break through the spatial limitations of traditional wire processing but also, with their high precision, high efficiency, and high flexibility, have become core equipment for modern wire forming, driving the metalworking industry towards intelligent and sophisticated processing.

II. Working Principle of the 3D CNC Wire Bending Machine

1. The machine utilizes a micro-drive to control the wire feeding of a high-precision servo motor, and the mechanical transmission utilizes precision gears to maintain optimal wire feeding accuracy and speed.
2. The shearing process utilizes a servo-driven cam, similar to the shearing principle of a 3D CNC wire bending machine. This eliminates the risks of hydraulic cylinder leakage, pipe burst, and excessive oil temperature associated with traditional 3D CNC wire bending machines.
3. The control system utilizes a dedicated CNC system with fully integrated quick-connect functionality, compatible with 2-4 axes, and a built-in handwheel adjustment function, making parameter settings for trial production very convenient. It can be used with an automatic pay-off stand and stores 100,000 sets of data, ensuring both ease of operation and a very stable control system.

III. 3D CNC Wire Bending Machine Application Industries

1. Automotive Parts: Car seat frames, door lock levers, serpentine springs (including single and double serpentine springs), cat head retaining springs, seat belt retaining springs, car seat support wire parts, motorcycle parts, bicycle parts, and bicycle baskets are all suitable for production using wire forming machines.

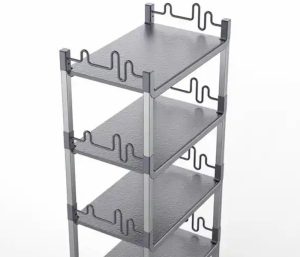

2. Household Hardware: Kitchen display racks, storage racks, egg beaters, cabinet pull-out baskets, refrigerator shelves, bathroom shelving wire products, supermarket shopping baskets, carts, display pendants, etc.
3. Wire crafts, lighting wire products, and fishing gear accessories, including wine racks, fruit bowls for KTVs, and various Christmas wire gifts, all utilize various shapes of steel wire or wire wound into flat or three-dimensional pieces.
4. Cage Processing: Pet cages, bird cages, dog cages, breeding cages, mouse traps, etc.
5. Hooks, including hangers, shoe hangers, curtain hooks, shelf hooks, and display rack hooks.

If you have any needs for this product, please feel free to contact us bender@antishicnc.com
