Our equipment has CE, ISO quality inspection certificate, so the quality is guaranteed to be cost-effective. According to different processing requirements, machines can be customized to fit for your usage, to provide customized services. In the processing period, we strictly control the production process, to ensure the quality of clearance, standardize the process, strict implementation.
Many years of production experience, high-quality machines
Factory direct sales, welcome to visit the factory
24-hour telephone, email online service.
No installation required, simple operation, support video teaching

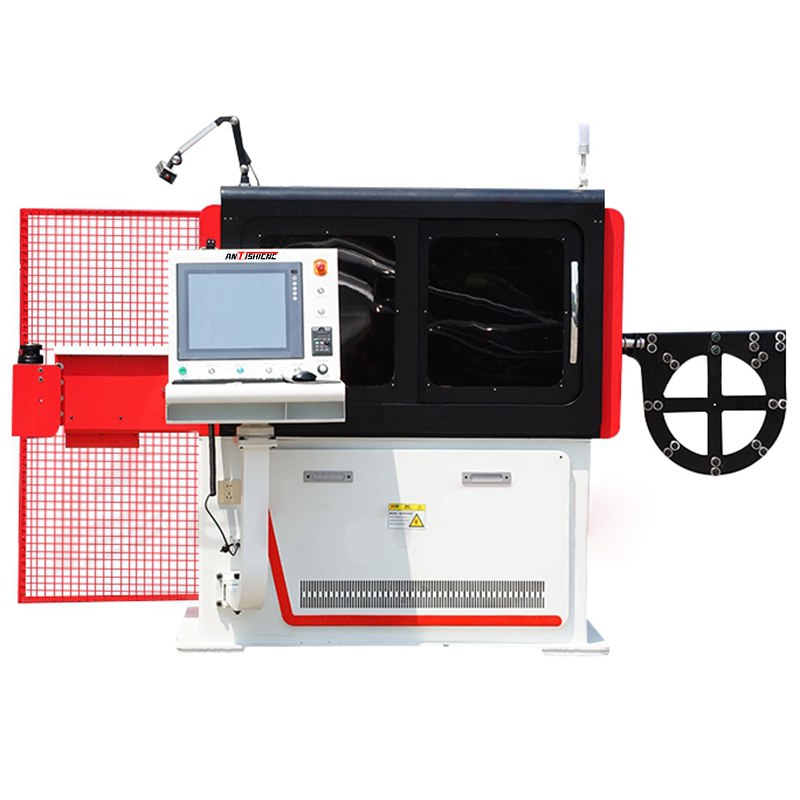

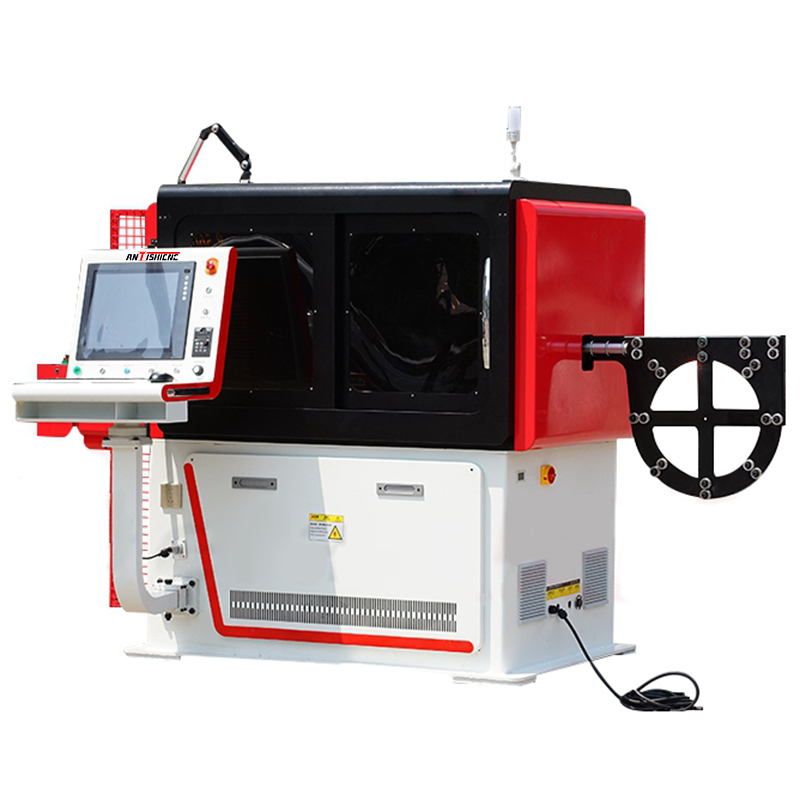

| Type | BL-3D-5600Parameter | |
| Applicable Wire Dia. | Soft material Φ:2.5-6.0mm Hard material Φ:2.5-4.0mm |
|
| Bending stroke | 600mm | |
| Number of control Axis | 5Axis | |
| Total power | 7.8KW | |
| Power Of Roating arm Motor | 2.7KW | |
| Power of wire feeding motor | 2.7KW | |
| Folding motor power | 1.0KW | |
| Lifting motor power | 0.4KW | |
| Power Of wire cutting Motor | 1.0KW | |
| Internal rotation motor power | / | |
| Maximum wire feeding speed | 90M／min | |
| Wire feeding accuracy | 300mm±0.1mm | |
| Angle accuracy | 90°±0.2° | |
| Input Power | 380V/50Hz/3Ph | |
| Weight | 1800KG | |
| Machine Size(L*W*H) | 3000×1900×1900mm | |
| Automatic feeder | Maximum load Weight: | 500KG |
| Diameter of Round Tray | φ1300mm | |
| Input Power | 1.5KW | |
| Weight | 450Kg | |
| Size (L*W*H) | 2000*1550*1250mm | |
Equipment features:
1. Computer control system and imported servo motors are used.
2. The computer has Chinese and English (optional) interfaces, which are easy to operate and accurately positioned. All motors can run synchronously or separately.
3. It is equipped with precision detection and tracking device, and can automatically stop if there are unqualified products.
4. According to the working conditions on the display screen, the angle, length, parameters, etc. of the product can be corrected.
5. When there is no wire, wire breakage, or entanglement, there is an automatic shutdown design and automatic acceleration function for the wire rack, making production easier and more effective.
6. The rotating head is completely separated from the wire feeding, which can truly realize the wire feeding without rotating when the head is turned, ensuring flexible and stable wire feeding.
7. Suitable for the production of: automotive parts, car door lock pull rods, handicraft metal wires, kitchen utensils and tableware brackets, storage cages, supermarket shelves, trolleys and other wire forming products.
Case drawing display:
Applicable to the production of automobile seat frames, sun visor frames, automobile door lock pull rods, handicraft metal wires, kitchenware and tableware stands, storage cages, supermarket trolleys, supermarket shelves and other wire forming products
