Fully understand the operating procedures of automatic pipe bending machines

In the field of modern industrial pipeline installation and maintenance, automatic pipe bending machines have become indispensable core equipment due to their high efficiency and precision. Whether it is laying pipes in factories, setting up logistics facilities in warehouses, or maintaining large equipment at docks, they are indispensable.

Ⅰ. Working Principle of Automatic Pipe Bending Machines

Automatic pipe bending machines are not traditional manual pipe bending tools. Instead, they are a novel device that integrates hydraulic transmission technology and mechanical structural design. Their core function is not limited to pipe bending; they also possess a practical lifting function. Their significant market share is due to a series of outstanding advantages: a rational structure ensures operational stability, preventing vibration or errors caused by improper component layout; user safety is a top priority in the design, with comprehensive features from protective devices to emergency braking systems to reduce operational risks; ease of operation is reflected in the user-friendly control interface and convenient adjustment methods, making it easy for even novice operators to quickly master the machine; their reasonable price makes them affordable for businesses of all sizes, eliminating the need to invest excessively in high-efficiency equipment; their rapid loading and unloading speed significantly reduces equipment setup and workpiece switching time, improving overall production efficiency; and their multi-purpose nature transcends the functional limitations of a single device, allowing them to meet pipe bending needs and also function as a lifting tool, significantly improving their cost-effectiveness.

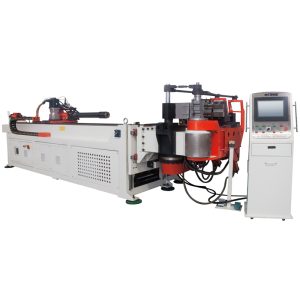

II. Introduction to the Structure of an Automatic Pipe Bending Machines

The efficient operation of an automatic pipe bending machine depends on the coordinated functioning of its core components. It primarily consists of six modules: an electric oil pump, high-pressure oil pipe, quick connector, working cylinder, plunger, and bending unit. Each component plays a critical role:
The electric oil pump is the “power heart” of the entire machine, responsible for converting electrical energy into hydraulic energy and providing the system with a high-pressure oil source.
The high-pressure oil pipe serves as the “energy transmission channel” and must be strong and resistant to high pressure to ensure stable, leak-free delivery of high-pressure oil to the working cylinder.
The quick connector is designed to enhance the machine’s flexibility, facilitating quick connection and disconnection of the high-pressure oil pipe and working cylinder, reducing equipment commissioning time.
The working cylinder is the core component that converts hydraulic energy into mechanical energy. The high-pressure oil within it generates a powerful thrust.
The plunger, under the action of this thrust, moves linearly, transmitting the cylinder’s thrust to the bending unit.
The bending unit is the actuator that directly acts on the workpiece. Working in conjunction with the plunger, it bends the tube to a preset angle. The entire workflow is closely linked, from power output to the final pipe bending action, forming an efficient and precise transmission chain.

Ⅲ. Applications of Automatic Pipe Bending Machines

Automatic pipe bending machines applications are extremely broad, covering multiple areas of industrial production and infrastructure construction. They are particularly well-suited for pipe installation and repair work in factories, warehouses, docks, construction, railways, and the automotive industry. In factories, they can bend various process pipes within production workshops, ensuring that pipe layouts meet production flow requirements. In warehouses and logistics centers, they provide precise bending services for metal pipe frames for shelving and conveying equipment. Large-scale loading and unloading equipment at docks often requires large-diameter pipes, and automatic pipe bending machines can easily handle these heavy-duty pipe bending operations. In the construction industry, the installation of air conditioning ducts and fire protection pipes is essential. In the railway industry, locomotive maintenance and trackside piping maintenance are also essential, as are the machining of vehicle frames and oil lines in automotive manufacturing.

IV. Automatic Pipe Bending Machine Operating Procedures

To ensure the safe and efficient operation of the automatic pipe bender and avoid equipment failure and personal injury, the following operating procedures must be strictly adhered to. Every step is crucial and must not be omitted or simplified:

1. Pre-operation Inspection: Pre-operation inspection is the first line of defense for safe operation. Each lubrication point (such as guide rails and transmission gears) must be individually checked for oil deficiency. Insufficient lubrication will cause increased component wear and shorten the life of the equipment. Also, check the operating mechanism (such as the rotating shaft of the bending component and the piston’s track) for looseness. If loose, tighten it immediately to prevent components from falling out during operation. Finally, confirm that safety devices (such as guardrails and emergency stop button protective covers) are secure and function properly in an emergency. Only proceed to the next step after all inspection items have been confirmed.

2. Oil Pump Startup and Pressure Check: After starting the pipe bender’s electric oil pump, do not rush to perform the pipe bending operation. First, verify that the system pressure is stable within the specified range (refer to the equipment manual for specific pressure values; pressure requirements vary by model). If the pressure is too high, it will not only increase the load on the electric oil pump and waste energy, but may also damage hydraulic components (such as high-pressure oil pipes and cylinder seals), leading to oil leaks or component failure. If the pressure is too low, insufficient thrust will be generated, affecting the quality of the bend or even causing the bend to fail. In this case, the oil pump pressure must be adjusted promptly until it meets the requirements.

3. Component Position and Angle Adjustment: Adjust the position and angle of relevant components on the equipment based on the specifications of the pipe to be processed (such as diameter and wall thickness) and the bending requirements (such as bend angle and radius). This step directly determines the accuracy of the bend. Use the equipment’s scale markings or auxiliary measuring tools (such as an angle ruler) to ensure that component positions are exactly aligned with the preset parameters to avoid unsatisfactory bend angles due to adjustment errors.

4. Component Positioning Length Adjustment: To ensure the correct starting position for the bend, adjust the component to the required length. The positioning component acts as the “baseline” for the pipe. If the positioning length is incorrect, the pipe bend will shift and fail to meet installation requirements. During adjustments, repeated testing is required to ensure that the positioning mechanism firmly contacts the front end of the pipe and that its relative position to the bending components meets process requirements.

5. Vertical Lift Guide Rail Adjustment: The vertical lift guide rail drives the guide die clamping cylinder. During adjustment, ensure that the guide die clamping cylinder securely grips the pipe after advancing and that the clamping force is moderate. Insufficient clamping force can cause the pipe to slip during the bending process, resulting in deformation. Excessive clamping force can damage the pipe surface or even collapse it (especially for thin-walled pipe). During adjustments, observe the contact between the guide die and the pipe to ensure even and secure clamping.

6. Clamp Cylinder Adjustment: The clamping cylinder is a key component that assists in securing the pipe and must be used in conjunction with the guide die clamping cylinder. During adjustment, ensure that the clamping die fits tightly against the pipe surface to further enhance the pipe’s stability and prevent rotation or displacement during the bending process. Also, pay attention to the clamping force to avoid damaging the pipe.

7. Normal Pipe Bending Operation: After all adjustments are complete, normal pipe bending can begin. Place the workpiece (iron pipe) smoothly into the bending die, ensuring that the front end of the pipe is in close contact with the positioning mechanism to avoid any gaps. The operator must remove both hands from the work area and press the foot pedal. The machine will then automatically complete the bending process. During the bending process, closely monitor the machine’s operating status and the pipe bending progress. If any abnormalities are observed (such as pipe deformation or unusual noise), immediately release the foot pedal and stop the operation.

8. Operational Safety and Emergency Procedures: When operating an automatic pipe bender, maintain full concentration. Never place your hands or other objects (such as tools or rags) in the work area. This is essential for personal safety. In the event of an emergency (such as a pipe jam or machine loss of control), immediately press the emergency stop button to shut off power to the machine and prevent further damage. After the emergency stop, turn the rotary switch to the manual position and manually reset the machine (such as retracting the plunger or releasing the guide die). The machine can only be restarted after the fault has been thoroughly identified and resolved. If a fault occurs that cannot be resolved independently (such as a hydraulic system leak or motor failure), it must be reported promptly and handled by professional maintenance personnel. Unauthorized disassembly of equipment components is strictly prohibited.

9. Post-Work Processing: After completing a work session, first turn off the power to the equipment and disconnect the main switch to prevent accidental startup. Then, clean the equipment and remove debris such as iron filings and oil stains from the workbench to prevent them from affecting the next operation. Finally, lubricate the equipment by adding lubricant to all lubrication points to extend its service life. Perform a simple inspection to ensure there are no obvious potential faults and prepare for the next use.

If you have any questions regarding the selection, operation, or maintenance of an automatic pipe bender, or require more product information, please feel free to contact us by sending a message. You can also visit our official website for detailed product information and consulting services. Our professional sales team, with extensive industry experience, can provide customized solutions based on your specific needs (such as pipe specifications and production efficiency requirements). We are always available to answer any questions and help you use your automatic pipe bending machines efficiently and safely.
